CrowPanel Advance Series

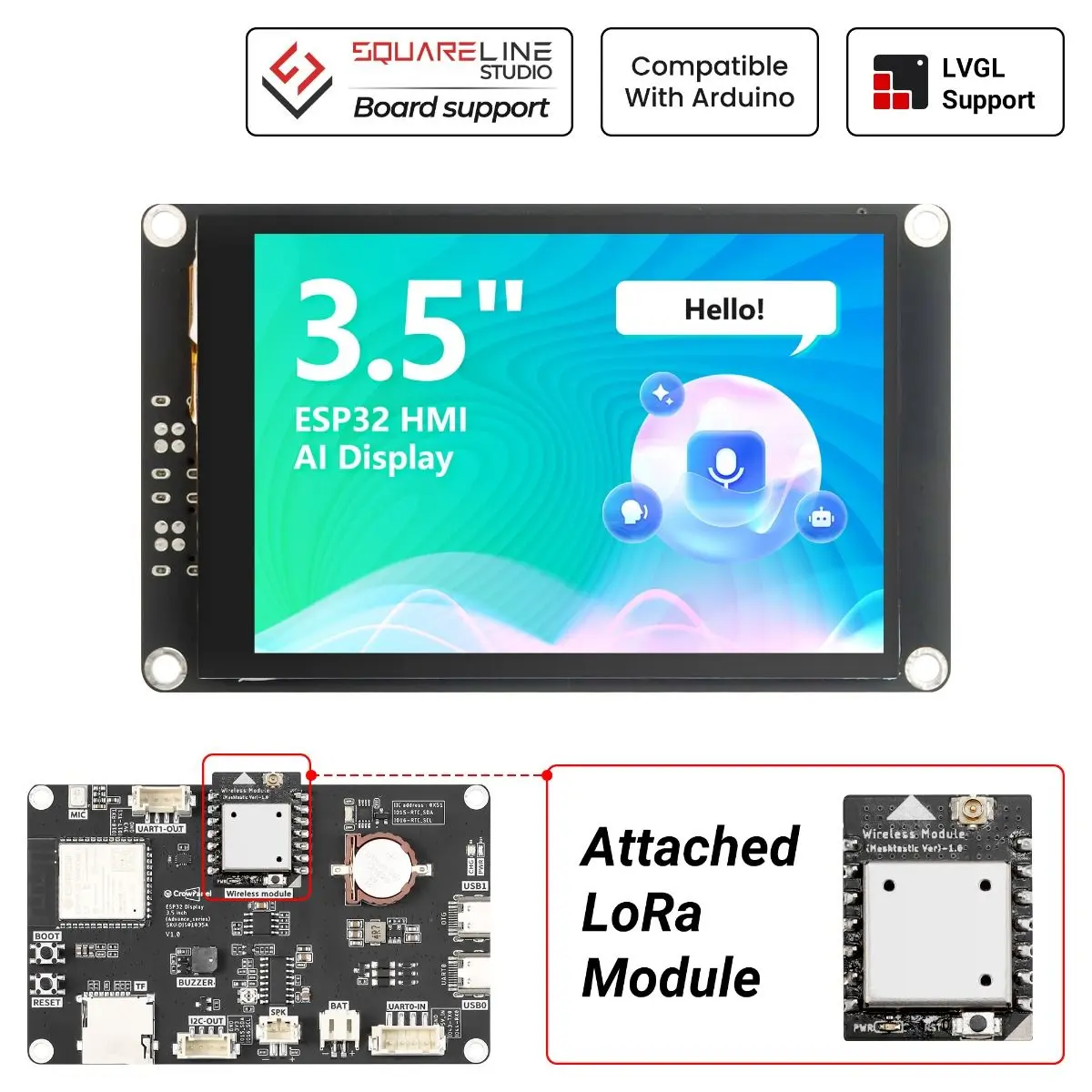

The CrowPanel Advance Series, designed by Elecrow, is a versatile line of high-performance HMI touch displays available in 2.4", 2.8", 3.5", 4.3", 5.0", and 7.0" sizes, all powered by the ESP32-SE platform. With modular wireless support including LoRa via the SX1262 module, these displays have been successuflly adapted for use with Meshtastic. Featuring vibrant IPS screens, responsive capacitive touch, and flexible I/O, the CrowPanel Advance series makes an ideal platform for Meshtastic UI (MUI).

Specifications​

  • MCU
    • ESP32-S3
      • WiFi 2.4GHz b/g/n
      • Bluetooth 5.0
  • LoRa Transceiver
    • Semtech SX1262
  • Frequency options
    • All Meshtastic options.
  • Antenna
    • U.FL/IPEX antenna connector for LoRa
  • Connectors
    • USB-C (x2)
    • BAT (PH2.0-2P)
  • Displays
    • IPS Capacitive Touch
      • 2.4" (320x240)
      • 2.8" (320x240)
      • 3.5" (480x320)
      • 4.3" (800x480)
      • 5.0" (800x480)
      • 7.0" (800x480)
