LILYGO® T-Lora Pager

The T-Lora Pager is a compact handheld LoRa device that pairs an ESP32-S3 microcontroller with a full QWERTY keyboard, 2.33-inch color display, and foldable external antenna for long-range, low-power communication in a pager-style form factor. It integrates GPS, NFC/RFID, audio, IMU, and power management features, making it a versatile platform for a portable Meshtastic node.

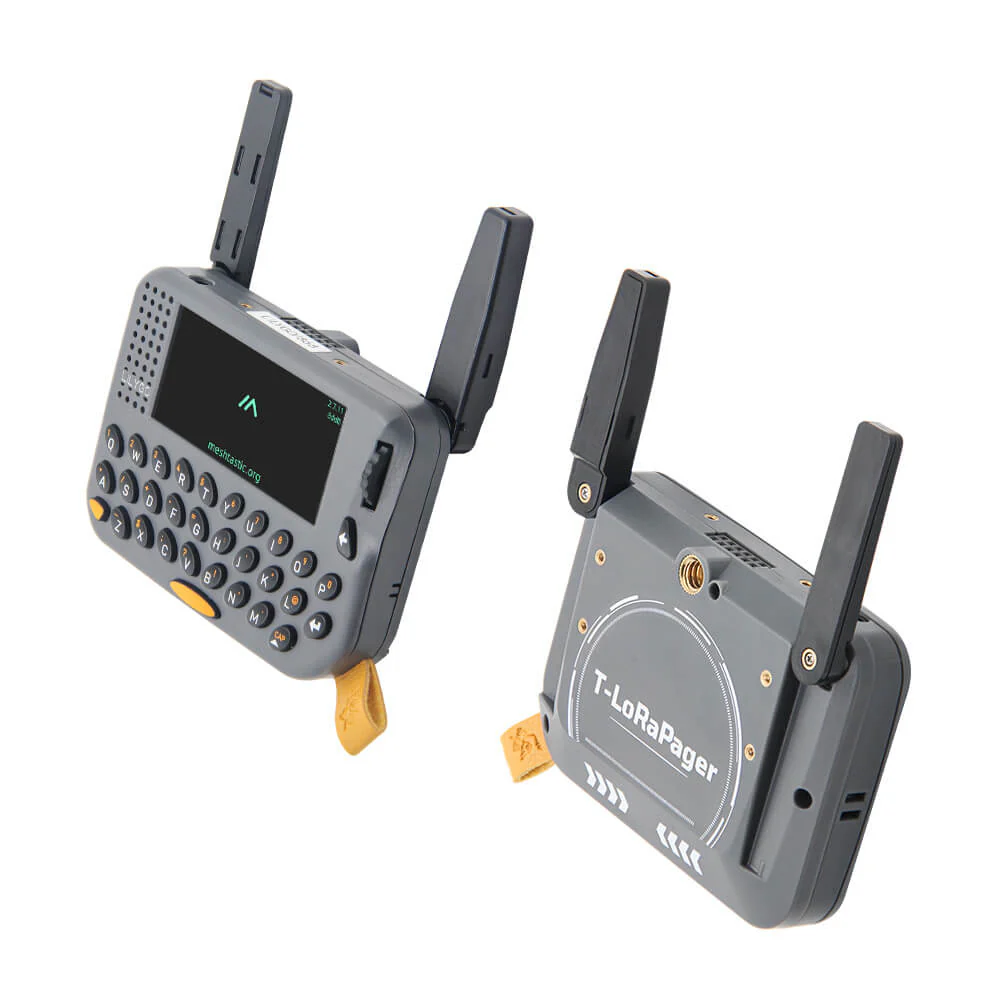

T-Lora Pager

Specifications

• MCU
  • ESP32-S3 (WiFi & Bluetooth 5 LE)
• LoRa Transceiver
  • Semtech LR1121
• Frequency options
  • 915 MHz
  • 868 MHz
  • 433 MHz
• Antenna
  • Inegrated foldable external attenna
• Connectors
  • USB-C
  • 2.54mm 2*8 Expansion port

Features

• QWERTY keyboard
• AI support IMU (BHI260AP)
• 2.33-inch long screen (222 x 480 resolution)
• U-blox GPS module (MIA-M10Q)
• RFID/NFC + RTC circuitry
• TI Power Management Monitoring Chipset
• ES8311 (microphone/speaker/headphone jack) Encoder + Keypad

Resources

• Firmware file: firmware-tlora-pager-X.X.X.xxxxxxx.bin
• Purchase Links:
  • US
    • Rokland
  • International
    • LilyGO Store
