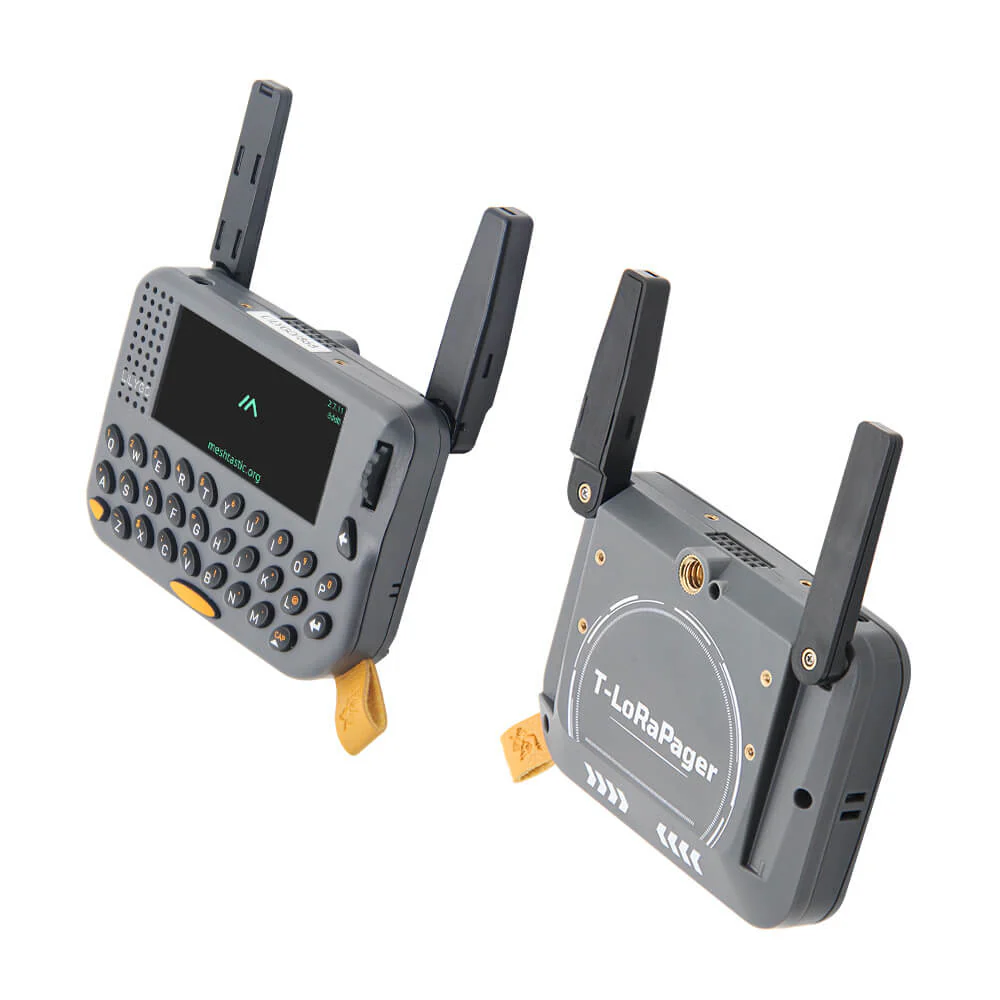

LILYGO® T-Lora Pager

LILYGO T-Lora Pager

The T-LoraLoRaA low-power, long-range wireless communication technology used by Meshtastic devices to enable communication over distances of several kilometers without the need for cellular, Wi-Fi, or other traditional network infrastructures. Pager is a compact handheld LoRaLoRaA low-power, long-range wireless communication technology used by Meshtastic devices to enable communication over distances of several kilometers without the need for cellular, Wi-Fi, or other traditional network infrastructures. device that pairs an ESP32ESP32A chipset of microcontroller made/designed by Espressif, used by a number of devices. Higher power usage than nRF52, but often cheaper and supports Wi-Fi if desired.-S3 microcontroller with a full QWERTY keyboard, 2.33-inch color display, and foldable external antenna for long-range, low-power communication in a pager-style form factor. It integrates GPSGPS (Global Positioning System). A satellite positioning system. A node with a GPS module determines its own location and can report that position to the mesh., NFCNFC (Near Field Communication). A very short-range wireless protocol. Some clients expose NFC-related settings./RFID, audio, IMU, and power management features, making it a versatile platform for a portable Meshtastic node.

Specifications​

  • MCUMCU (Microcontroller Unit). The microcontroller that runs the firmware on a device. The hardware tables list the MCU for each supported board.
    • ESP32ESP32A chipset of microcontroller made/designed by Espressif, used by a number of devices. Higher power usage than nRF52, but often cheaper and supports Wi-Fi if desired.-S3 (WiFi & Bluetooth 5 LE)
  • LoRaLoRaA low-power, long-range wireless communication technology used by Meshtastic devices to enable communication over distances of several kilometers without the need for cellular, Wi-Fi, or other traditional network infrastructures. Transceiver
    • Semtech LR1121
  • Frequency options
    • 915 MHzMHz (Megahertz). A unit of frequency equal to one million hertz (cycles per second), used to specify the operating frequency of LoRa devices in the Meshtastic network, affecting range and data rate.
    • 868 MHzMHz (Megahertz). A unit of frequency equal to one million hertz (cycles per second), used to specify the operating frequency of LoRa devices in the Meshtastic network, affecting range and data rate.
    • 433 MHzMHz (Megahertz). A unit of frequency equal to one million hertz (cycles per second), used to specify the operating frequency of LoRa devices in the Meshtastic network, affecting range and data rate.
  • Antenna
    • Integrated foldable external antenna
  • Connectors
    • USBUSB (Universal Serial Bus). The wired connection used to power a device, flash firmware onto it, and communicate with it over serial.-C
    • 2.54mm 2*8 Expansion port

Features​

  • QWERTY keyboard
  • AI support IMU (BHI260AP)
  • 2.33-inch long screen (222 x 480 resolution)
  • U-blox GPSGPS (Global Positioning System). A satellite positioning system. A node with a GPS module determines its own location and can report that position to the mesh. module (MIA-M10Q)
  • RFID/NFCNFC (Near Field Communication). A very short-range wireless protocol. Some clients expose NFC-related settings. + RTC circuitry
  • TI Power Management Monitoring Chipset
  • ES8311 (microphone/speaker/headphone jack) Encoder + Keypad

Resources​

  • Firmware file: firmware-tlora-pager-X.X.X.xxxxxxx.bin
  • Purchase Links:

T-Lora Pager
