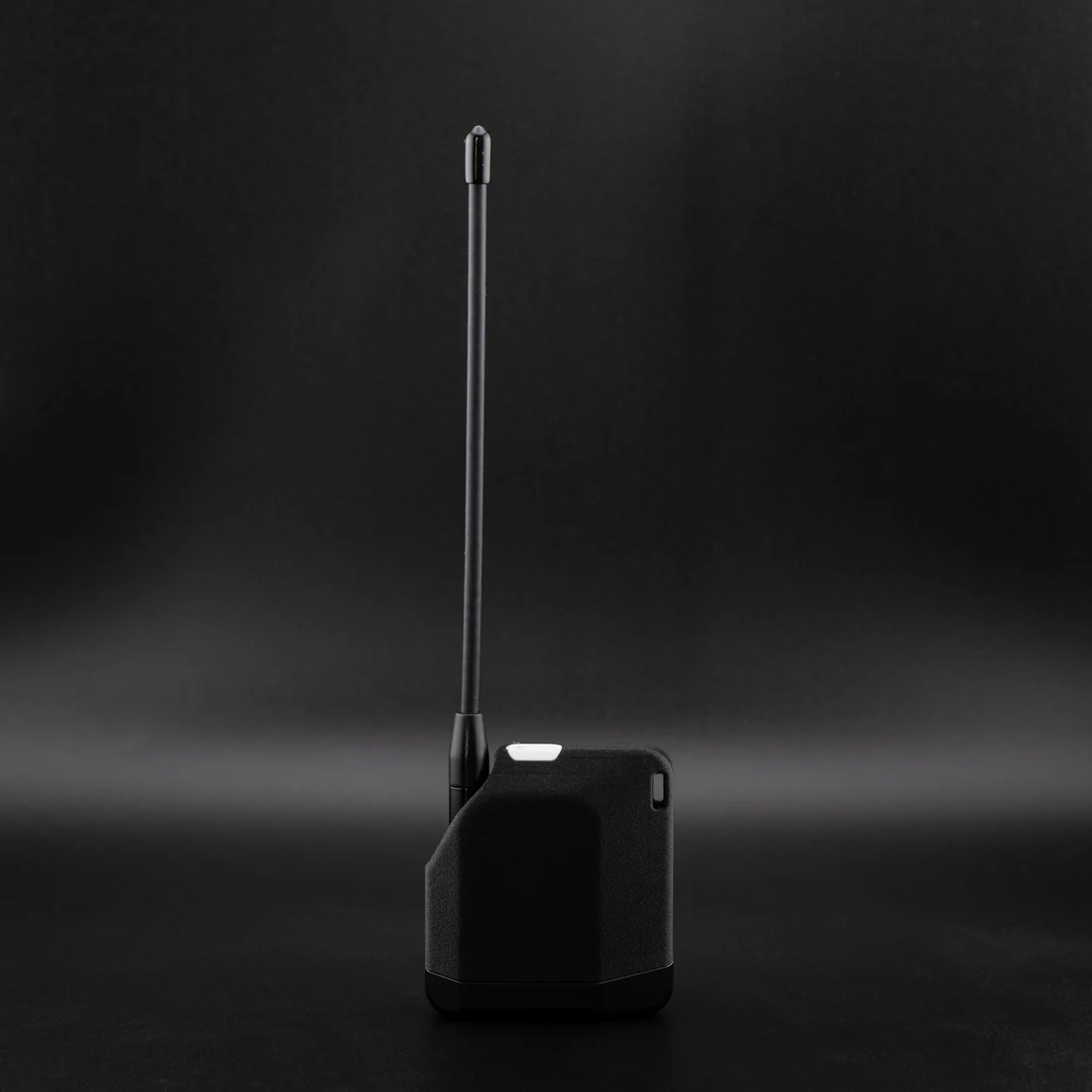

muzi ᴡᴏʀᴋꜱ R1 Neo

The R1 Neo is muzi ᴡᴏʀᴋꜱ' first custom-designed and manufactured Meshtastic device, featuring built-in GPSGPS (Global Positioning System). A satellite positioning system. A node with a GPS module determines its own location and can report that position to the mesh. with complete power switch off, water-resistant construction, and multi-day battery life in a compact form factor 16% smaller than the previous generation R1. The device combines an aircraft-grade aluminum base with 3D printed PETG carbon fiber, flexible whip antenna, and battery temperature safety sensing for reliable performance in challenging outdoor conditions.

Specifications

• MCUMCU (Microcontroller Unit). The microcontroller that runs the firmware on a device. The hardware tables list the MCU for each supported board.
  • nRF52840nRF52840A Nordic microcontroller from the nRF52 family, used in devices such as the RAK WisBlock core modules. Provides Bluetooth LE 5.0 and very low power consumption. (Bluetooth 5 LE)
• LoRaLoRaA low-power, long-range wireless communication technology used by Meshtastic devices to enable communication over distances of several kilometers without the need for cellular, Wi-Fi, or other traditional network infrastructures. Transceiver
  • Semtech SX1262SX1262A Semtech sub-GHz LoRa transceiver, used in most current Meshtastic hardware and recommended over the older SX127x series.
• Frequency options
  • 915 MHzMHz (Megahertz). A unit of frequency equal to one million hertz (cycles per second), used to specify the operating frequency of LoRa devices in the Meshtastic network, affecting range and data rate.
  • 868 MHzMHz (Megahertz). A unit of frequency equal to one million hertz (cycles per second), used to specify the operating frequency of LoRa devices in the Meshtastic network, affecting range and data rate.
• Antenna
  • Whip Antenna (SMASMAA threaded coaxial connector for attaching an external antenna. RP-SMA is the reverse-polarity variant, which is not interchangeable with it. connector)
• Connectors
  • USBUSB (Universal Serial Bus). The wired connection used to power a device, flash firmware onto it, and communicate with it over serial.-C

Features

• Compact and rugged design
• Built-in GPSGPS (Global Positioning System). A satellite positioning system. A node with a GPS module determines its own location and can report that position to the mesh. module
• Onboard RTC for accurate timekeeping
• Built-in buzzer for notifications

Resources

• Firmware file: firmware-r1-neo-X.X.X.xxxxxxx.uf2
• Purchase Links:
  • US
    • muzi ᴡᴏʀᴋꜱ
