HELTEC® MeshPocket

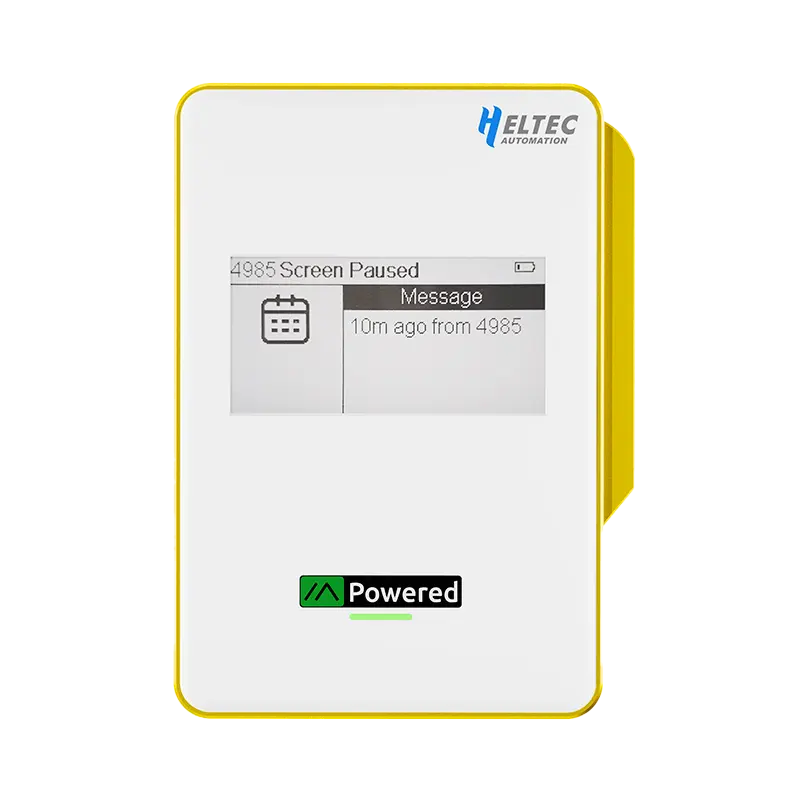

MeshPocket, made by Heltec, is a compact and portable device that combines QI2 magnetic wireless charging with an integrated low-power Meshtastic device based on the nRF52840nRF52840A Nordic microcontroller from the nRF52 family, used in devices such as the RAK WisBlock core modules. Provides Bluetooth LE 5.0 and very low power consumption. MCUMCU (Microcontroller Unit). The microcontroller that runs the firmware on a device. The hardware tables list the MCU for each supported board. and a 2.13" e-ink display. Available with either a 5000 or 10000 mAh battery, it is designed for everyday use, outdoor exploration, and reliable off-grid messaging.
Specifications
- MCUMCU (Microcontroller Unit). The microcontroller that runs the firmware on a device. The hardware tables list the MCU for each supported board.:
- nRF52840nRF52840A Nordic microcontroller from the nRF52 family, used in devices such as the RAK WisBlock core modules. Provides Bluetooth LE 5.0 and very low power consumption.
- Bluetooth 5.0
- nRF52840nRF52840A Nordic microcontroller from the nRF52 family, used in devices such as the RAK WisBlock core modules. Provides Bluetooth LE 5.0 and very low power consumption.
- LoRaLoRaA low-power, long-range wireless communication technology used by Meshtastic devices to enable communication over distances of several kilometers without the need for cellular, Wi-Fi, or other traditional network infrastructures. Transceiver:
- Semtech SX1262SX1262A Semtech sub-GHz LoRa transceiver, used in most current Meshtastic hardware and recommended over the older SX127x series.
- Frequency Options:
- 863 - 870 MHzMHz (Megahertz). A unit of frequency equal to one million hertz (cycles per second), used to specify the operating frequency of LoRa devices in the Meshtastic network, affecting range and data rate.
- 902 - 928 MHzMHz (Megahertz). A unit of frequency equal to one million hertz (cycles per second), used to specify the operating frequency of LoRa devices in the Meshtastic network, affecting range and data rate.
- Antenna:
- Integrated LoRaLoRaA low-power, long-range wireless communication technology used by Meshtastic devices to enable communication over distances of several kilometers without the need for cellular, Wi-Fi, or other traditional network infrastructures. antenna
- Connectors:
- USBUSB (Universal Serial Bus). The wired connection used to power a device, flash firmware onto it, and communicate with it over serial.-C
- 4-pin magnetic pins for interacting with the Meshtastic device
Features
- QI2 wireless charger with integrated Meshtastic device.
- 2.13" e-ink display.
- 5000 or 10000 mAh battery options.
Flashing
To flash firmware on the Heltec MeshPocket, you must use the included magnetic pogo pin cable connected to the side of the device. The USBUSB (Universal Serial Bus). The wired connection used to power a device, flash firmware onto it, and communicate with it over serial.-C port is only for charging the internal battery or supplying power to another device, it does not support data transfer or firmware flashing.
- Trigger DFUDFU (Device Firmware Update). A state in which a device is placed into for it to receive a firmware update. mode manually by double-clicking the RST button.
- Copy the firmware UF2 file into the mounted drive that appears.
Resources
- Firmware files:
- 5000 mAh:
firmware-heltec-mesh-pocket-5000-X.X.X.xxxx.uf2firmware-heltec-mesh-pocket-inkhud-5000-X.X.X.xxxx.uf2
- 10000 mAh:
firmware-heltec-mesh-pocket-10000-X.X.X.xxxx.uf2firmware-heltec-mesh-pocket-inkhud-10000-X.X.X.xxxx.uf2
- 5000 mAh:
- Purchase links
- International
- Heltec MeshPocket User Guide
- Heltec MeshPocket Datasheet
